- Superimposed back pressure exists before the valve opens.
- Built-up back pressure is generated by relief flow through the outlet system.
- Total back pressure during relief combines the applicable superimposed and built-up components.
- Constant and variable describe the behavior of superimposed back pressure; they are not separate primary categories.
››› Definition
Back pressure is the pressure acting at the valve outlet
The outlet pressure may come from a pressurized vessel, flare header, common relief header, scrubber, silencer, closed vent, recovery system or the pressure loss created by the valve’s own discharge flow.
For engineering review, the value should be identified by source and timing. A single number labelled only “back pressure” is incomplete because pressure present before opening can affect the valve differently from pressure generated after opening.
Plain-language summary
Before opening: superimposed back pressure.
After opening: built-up back pressure.
During relief: total back pressure for the applicable case.
After opening: built-up back pressure.
During relief: total back pressure for the applicable case.
››› Types of Back Pressure
Use these terms consistently in calculations, datasheets and RFQs
The classification should show where the pressure comes from and whether it exists before or after the valve opens.
01
Superimposed Back Pressure
Pressure present at the valve outlet before opening. It may be constant or variable and can come from a pressurized downstream system or common header.
02
Built-up Back Pressure
Pressure generated after opening as relief flow passes through the tailpipe, fittings, header, silencer, scrubber or other downstream resistance.
03
Total Back Pressure
The outlet pressure acting during the relieving event. It combines the applicable superimposed and built-up back-pressure components.
››› Constant vs Variable
Constant and variable are subtypes of superimposed back pressure
Constant superimposed back pressure remains essentially stable over the relevant operating period. Variable superimposed back pressure changes with header operation, other relieving devices, downstream control or process conditions.
The RFQ should record minimum, normal and maximum credible values instead of only one design number.
Examples
- Constant: stable pressure in a receiving vessel or controlled downstream system
- Variable: flare-header pressure changes as other devices relieve
- Variable: closed vent or recovery pressure changes with operating mode
- Variable: common header pressure changes with simultaneous relief cases
- Constant or variable pressure may require cold differential test pressure review
- The selected valve must be checked against the full credible pressure range
››› Why It Matters
Back pressure can change how a safety valve opens, flows and reseats
The exact effect depends on valve design, internal areas, service, fluid phase, pressure ratio and certified manufacturer data.
01
Opening and Set-Pressure Behavior
Outlet pressure can alter the net force acting on a conventional spring-loaded valve and may require set-pressure or CDTP review.
02
Relieving Capacity
Back pressure can reduce the available pressure ratio and require a certified correction factor or manufacturer capacity curve.
03
Lift and Stability
Excessive or changing outlet pressure can contribute to incomplete lift, unstable flow, chatter or interaction with the inlet system.
04
Blowdown and Reseating
Outlet pressure can change the pressure at which the valve closes and the stability of the reseating process.
05

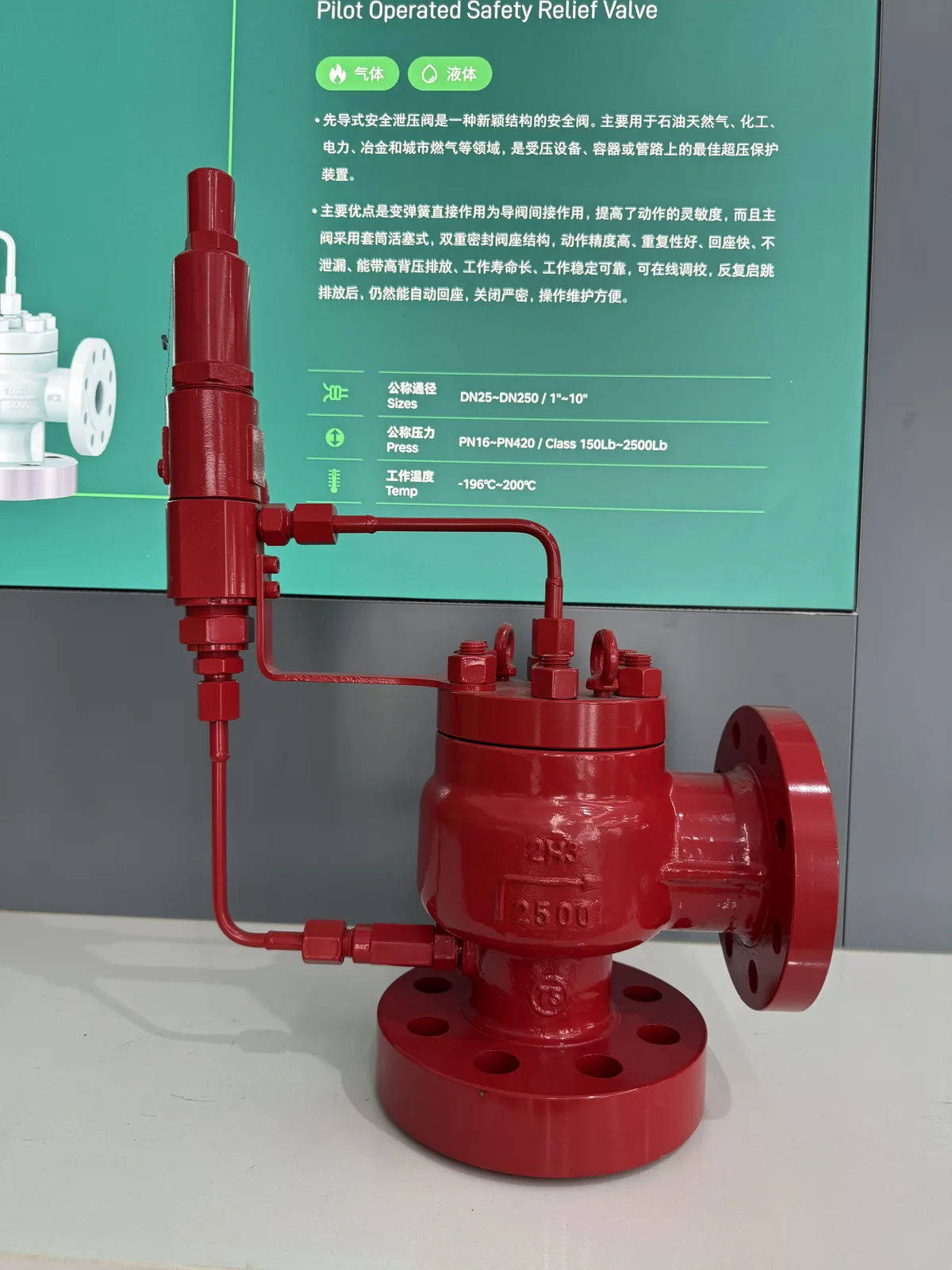

Valve-Type Selection
The pressure profile may support a conventional, balanced bellows or pilot-operated design, subject to certified limits.
06
Outlet-System Design
The piping, flare, vent, scrubber, reaction force, drainage and simultaneous-relief case remain part of the system review.
››› Quick Engineering Workflow
How back pressure should be documented
Use this short workflow for datasheet and RFQ preparation. Use the full Back Pressure and Bellows guide for valve-type selection.
01
Identify the discharge destination
Define atmosphere, flare header, closed vent, scrubber, silencer, recovery system or pressurized vessel.
02
Record pre-opening pressure
State minimum, normal and maximum superimposed pressure and whether it is constant or variable.
03
Calculate flow-generated pressure
Determine built-up pressure at the governing relieving flow and simultaneous-header case.
04
Check the selected valve
Verify capacity correction, opening behavior, stability, bellows or pilot limits and outlet rating.
››› RFQ Data
What to enter for back pressure in a safety valve RFQ
Do not enter only “5 barg back pressure” without stating whether it exists before opening, develops during relief or varies with header conditions.
Recommended RFQ fields
- Discharge destination and system description
- Minimum, normal and maximum superimposed back pressure
- Whether superimposed pressure is constant or variable
- Built-up back pressure at governing relieving flow
- Total back pressure for each credible case
- Outlet piping size, length, fittings and elevation
- Simultaneous relief assumptions for common headers
- Set pressure, allowable overpressure and required capacity
- Fluid composition, phase and relieving temperature
- Requested valve type, material and documentation standard
››› Common Mistakes
Back-pressure errors that lead to poor valve selection
These issues should be corrected before the datasheet or purchase order is released.
01
Using one undefined number
The supplier cannot tell whether the value is superimposed, built-up or total.
02
Treating constant and variable as primary categories
They are behaviors of superimposed back pressure, not replacements for the superimposed/built-up distinction.
03
Ignoring simultaneous relief
A common header may reach its maximum pressure when other devices discharge at the same time.
04
Assuming bellows removes all limits
Capacity correction, bellows limits, venting and outlet-system design still require verification.
05
Ignoring outlet temperature
The outlet flange, body and piping must be rated for the credible pressure-temperature condition.
06
Using nominal pipe size as proof
Pipe size alone does not establish built-up pressure or acceptable valve performance.
07
Missing pressure range
Variable back pressure should include minimum, normal and maximum credible values.
08
Skipping manufacturer data
Allowable limits and correction factors depend on the certified valve design and service.
››› Related Engineering Resources
Continue from the glossary definition to engineering selection
These links use current ZOBAI pages already available on the website.
01
Back Pressure and Bellows
Full engineering guide covering definitions, force balance, bellows limitations and valve-type selection.
02
High Back Pressure Applications
Application guidance for flare headers, closed systems, scrubbers and variable downstream pressure.
03
Bellows Balanced Safety Valves
Product-family page for balanced bellows construction, service factors and RFQ information.
04
API 520 Safety Valve Sizing
Connect the outlet-pressure condition with device sizing, selection and certified capacity.
05
API 521 Relief Systems
Review flare, vent, depressuring and system-level relief conditions.
06
Safety Valve Installation
Review outlet piping, supports, reaction force, drainage and commissioning.
››› FAQ
Common questions about back pressure
Back pressure is the pressure at the outlet of a pressure-relief valve. It may exist before opening, develop because of discharge flow after opening, or include both components during relief.
It is outlet pressure that exists before the valve opens. It may be constant or variable depending on the downstream system.
It is pressure generated after the valve opens because relieving flow passes through outlet piping, fittings, headers or disposal equipment.
It is the outlet pressure acting during relief and combines the applicable superimposed and built-up components.
No. It reduces the pressure-area force effect on the spring-loaded mechanism, but capacity correction, stability, bellows limits, venting and downstream-system pressure still require review.
State the discharge destination, minimum and maximum superimposed pressure, whether it is constant or variable, built-up pressure at governing flow, total pressure for credible cases and the outlet piping details.
