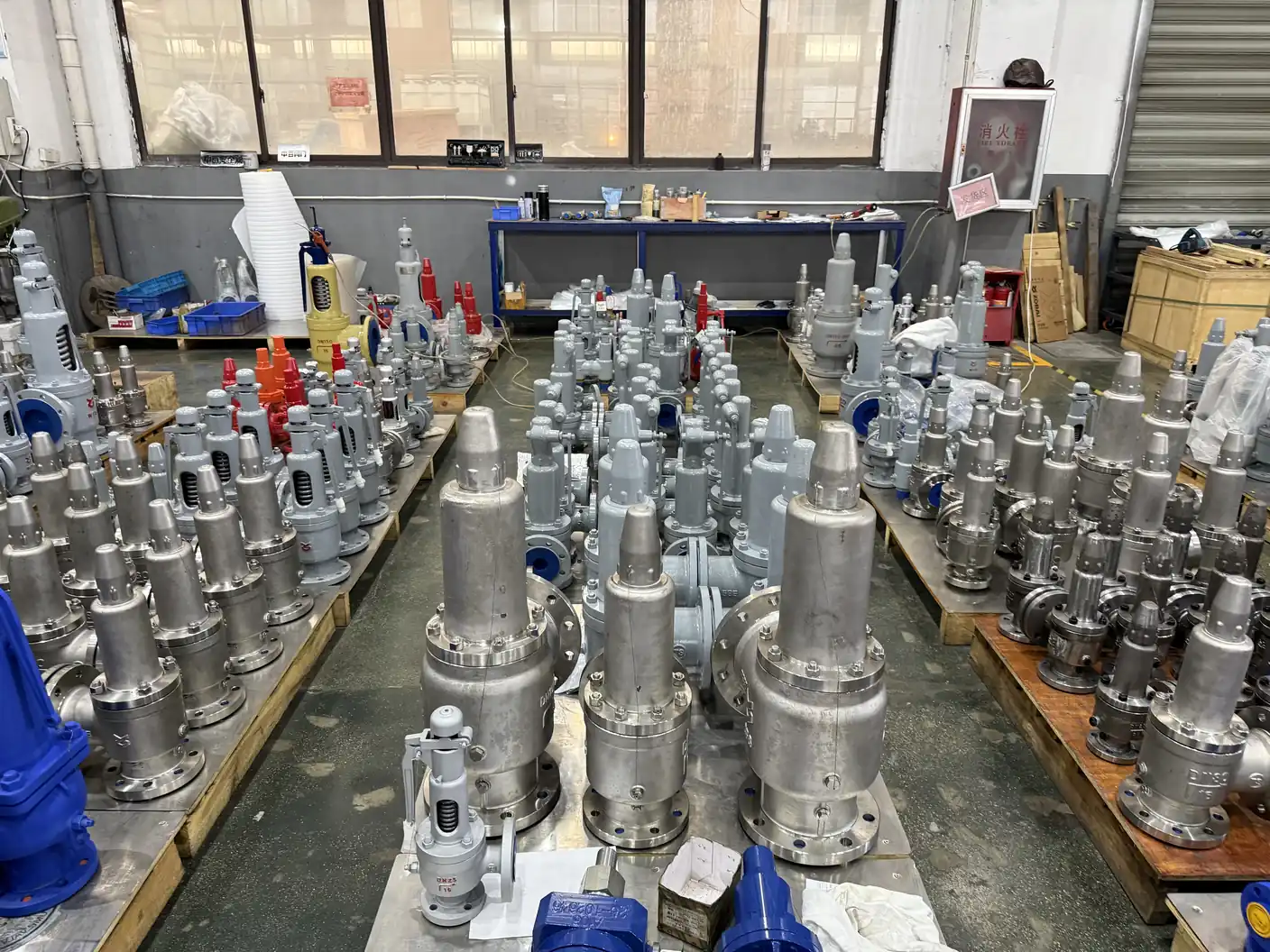

Heat Exchanger Safety Valves for Shell Side, Tube Side, Reboiler, Condenser and Utility Protection
Heat exchanger safety valves protect shell-and-tube exchangers, plate heat exchangers, reboilers, condensers, vaporizers, steam heaters, hot water generators, oil coolers, aftercoolers, intercoolers and process heating or cooling packages from overpressure. Correct PSV or PRV selection starts with shell-side and tube-side MAWP, set pressure, design temperature, high-pressure side source, low-pressure side protection limit, tube rupture scenario, blocked outlet, thermal expansion, utility control failure, two-phase or flashing relief, discharge destination, back pressure, material compatibility and required test documentation.
Where Safety Valves Are Used on Heat Exchanger Systems
Heat exchanger pressure relief is driven by the interaction between two sides of the exchanger. A high-pressure tube side can overpressure a low-pressure shell side after tube rupture. A blocked liquid side can overpressure from thermal expansion. A steam, hot oil or refrigerant utility side can also create pressure rise when controls fail.
Shell-and-Tube Heat Exchangers
Used in refinery, petrochemical, chemical, power, LNG, gas processing and utility systems. PSV selection should review shell-side MAWP, tube-side design pressure, tube rupture, blocked outlet, fire case, thermal expansion and discharge path.
Plate Heat Exchangers
Used for water, glycol, oil, food, pharmaceutical, HVAC and process heating or cooling. Relief review should include trapped liquid expansion, gasket compatibility, rapid pressure rise, isolation valves and low-volume pressure protection.
Reboilers and Vaporizers
Used on distillation columns, evaporation units, LNG vaporizers, solvent recovery and process heating systems. Key checks include vapor generation, blocked outlet, steam or hot oil failure, two-phase relief and flare back pressure.
Condensers and Air Coolers
Used on overhead vapor systems, compressor aftercoolers, refrigeration condensers and process coolers. Selection should review cooling failure, blocked condensate outlet, vapor accumulation, tube rupture and liquid flooding.
Steam Heaters and Hot Water Generators
Used where steam heats water, process liquid, glycol or cleaning fluid. Relief scenarios include steam control valve failure, tube rupture, trapped water expansion, blocked outlet and low-pressure side overpressure.
Oil Coolers and Compressor Intercoolers
Used on lubrication oil coolers, hydraulic oil coolers, compressor intercoolers, aftercoolers and gas cooling packages. Relief review should include compressor discharge pressure, water-side tube rupture, oil expansion, fouling and vibration.
Heat Exchanger PSV Selection Starts With the Governing Overpressure Scenario
Heat exchangers can overpressure from internal failure, blocked flow, thermal expansion or utility control failure. The selected valve must protect the weaker side of the exchanger under the credible relief case, not simply match an existing nozzle or old nameplate.
Tube Rupture From High-Pressure Side to Low-Pressure Side
If the high-pressure side leaks into a lower-pressure side, the low-pressure side may be exposed to a sudden inflow. Relief review should include pressure differential, fluid phase, exchanger volume, downstream path and whether full-bore or limited rupture is the design basis.
Thermal Expansion of Blocked-In Liquid
Liquid trapped in shell, tube bundle, exchanger channel, bypass line or connected piping can expand when heated. Thermal relief valves may be small, but they protect blocked-in volumes from very high pressure.
Blocked Outlet or Closed Downstream Valve
A pump, compressor, column, utility source or upstream pressure can continue feeding an exchanger while the outlet is blocked. Required capacity should be based on the maximum credible inflow or vapor generation.
Steam, Hot Oil or Utility Control Valve Failure
A failed-open steam, hot oil or thermal fluid control valve can overheat the process side and generate vapor. Relief sizing should review heat duty, vapor pressure, flashing, outlet restriction and discharge system capacity.
Cooling Failure, Condensation Loss or Vapor Accumulation
Condensers and coolers may lose heat removal during cooling water failure, air fan trip, fouling or blocked condensate outlet. Pressure can rise from vapor accumulation, flashing or loss of condensation.
External Fire Exposure
Hydrocarbon or solvent-filled exchangers may require fire-case relief review. Fire exposure can vaporize liquid inventory and create two-phase discharge, especially in reboilers, condensers, coolers and horizontal shell-side liquid service.
Heat Exchanger Safety Valve Application Cases with Typical RFQ Data
These cases show how heat exchanger relief requirements are commonly described before model selection. Final sizing must be confirmed by exchanger datasheet, shell/tube design pressure, process conditions, applicable code, verified relief calculation and discharge system review.
Case 1: Shell-Side PSV for Tube Rupture
Tube RuptureTube rupture is one of the most important exchanger relief cases. The low-pressure side protection should be based on pressure differential, credible rupture area, fluid phase and the ability of the downstream system to handle the relief flow.
Case 2: Steam Heater Low-Pressure Water Side Relief
Steam Control FailureSteam-heated exchangers can overpressure the water side from direct steam leakage or excessive heat input. Relief selection should consider both tube rupture and blocked-in hot water expansion.
Case 3: Reboiler PSV for Blocked Vapor Outlet
Reboiler ReliefReboiler relief may involve flashing liquid or two-phase discharge. The valve should be selected from heat input and vapor generation rather than normal operating vapor flow only.
Case 4: Plate Heat Exchanger Thermal Relief Valve
Blocked-In LiquidPlate heat exchangers have compact internal volumes, but blocked-in liquid can still generate high pressure. Thermal relief should be reviewed wherever isolation valves can trap liquid between hot and cold sides.
Case 5: Condenser Relief During Cooling Failure
Cooling FailureCondensers can lose pressure control when heat removal fails. Relief review should include vapor load, condensate blockage, flooding, downstream restrictions and safe vapor discharge.
Case 6: Compressor Aftercooler Tube Rupture PSV
Gas CoolerCompressor coolers can expose a low-pressure water or glycol side to high-pressure gas. Gas release location, vibration and possible liquid carryover should be reviewed before final valve selection.
Heat Exchanger Safety Valve Data Matrix
| Heat Exchanger Service | Typical Medium | Common Relief Cause | Required Engineering Check | Recommended Valve Review | Risk if Missed |
|---|---|---|---|---|---|
| Shell-and-tube exchanger | Process gas, liquid hydrocarbon, cooling water, steam, glycol | Tube rupture, blocked outlet, fire exposure | Shell/tube MAWP, pressure differential, phase behavior and discharge route | PSV sized for governing side-to-side failure or blocked flow case | Low-pressure side rupture or unsafe process release |
| Plate heat exchanger | Water, glycol, oil, CIP fluid, process liquid | Thermal expansion, blocked-in liquid, pump deadhead | Trapped volume, gasket rating, liquid expansion and return path | Thermal relief valve with compatible soft parts | Gasket blowout, plate damage or leakage |
| Reboiler / vaporizer | Solvent, hydrocarbon, LPG, refrigerant, process liquid | Blocked vapor outlet, excessive heat input, fire case | Heat duty, vapor generation, flashing, two-phase risk and flare back pressure | PSV or rupture disc combination depending on fouling and phase behavior | Undersized valve or unstable two-phase relief |
| Condenser / air cooler | Vapor, condensate, refrigerant, hydrocarbon gas | Cooling failure, blocked condensate outlet, vapor accumulation | Vapor load, heat removal loss, liquid flooding and vent header back pressure | Gas/vapor PSV with safe discharge or closed relief connection | Overpressure during cooling failure or blocked condensate |
| Steam heater | Steam, water, condensate, hot process liquid | Steam control failure, tube leak, trapped water expansion | Steam pressure, water-side MAWP, flashing and hot discharge safety | Steam/water PSV or thermal relief valve based on case | Water-side overpressure or unsafe hot discharge |
| Compressor cooler | Compressed air, hydrogen, natural gas, cooling water, glycol | Tube rupture, compressor overpressure, blocked cooling path | Gas-side pressure, cooler MAWP, gas capacity, vibration and venting | Gas PSV with supported piping and safe vent route | Cooling-side rupture or hazardous gas release |
How to Specify a Heat Exchanger Safety Valve Correctly
1. Confirm shell-side and tube-side design limits
Start with exchanger datasheet, shell-side MAWP, tube-side MAWP, design temperature, test pressure, design code, flange rating, nozzle size and operating pressure. The valve must protect the lower-rated pressure boundary.
2. Identify all credible relief scenarios
Review tube rupture, blocked outlet, trapped liquid thermal expansion, utility control failure, cooling failure, fire exposure, pump deadhead, vaporizer overheat and condensate outlet blockage. The governing case controls capacity.
3. Define the high-pressure source
The high-pressure source may be steam, gas compressor discharge, pump discharge, process reactor pressure, refrigerant pressure, hot oil supply or upstream pipeline pressure. Source pressure and maximum flow decide the relief load.
4. Confirm medium phase at relieving condition
Exchanger relief may be gas, vapor, liquid, flashing liquid, wet steam, condensate or two-phase mixture. Phase behavior affects sizing, valve type, outlet piping, reaction force and effluent handling.
5. Review back pressure and discharge destination
Relief may discharge to atmosphere, drain, closed collection, flare, scrubber, condenser, hot water return, tank return or refrigerant relief header. Back pressure can affect capacity and may require a bellows balanced or pilot operated design.
6. Confirm materials, corrosion and fouling risk
Body, trim, spring, bellows, gasket and soft seat materials should match steam, condensate, chloride water, hydrocarbons, acids, refrigerants, hydrogen, oxygen, glycol or thermal oil service. Fouling, scaling and freezing should also be reviewed.
Heat Exchanger Relief Valves Must Be Reviewed With Inlet Piping, Outlet Piping and Effluent Handling
Why exchanger installation changes valve performance
Heat exchanger relief valves are often installed on compact skids with short nozzles, isolation valves, bypass lines, drains, condensate pockets and shared relief headers. Poor installation can create excessive inlet pressure loss, blocked discharge, liquid pockets, unstable operation or unsafe release.
Exchanger PSV installation should review valve location, short inlet path, no unauthorized isolation, outlet pipe support, discharge reaction force, drainage, flare or relief header back pressure, scrubber pressure drop, thermal expansion, freezing, maintenance access and whether the valve protects the correct side of the exchanger.
Field installation checks
- Confirm which side of the exchanger is being protected.
- Verify shell-side and tube-side MAWP before selecting set pressure.
- Install thermal relief where liquid can be blocked in and heated.
- Keep inlet pressure loss within the project design limit.
- Support outlet piping without loading the valve body or exchanger nozzle.
- Route steam, hot liquid, toxic vapor, flammable vapor or refrigerant to approved safe destinations.
- Provide access for inspection, cleaning, calibration and valve replacement.
Standards and Documents to Confirm Before Ordering
Common heat exchanger relief references
Heat exchanger relief specifications may reference ASME, API, TEMA, ISO, EN, GB, local pressure vessel rules, refrigeration codes, owner specifications and skid package standards. The applicable design and relief basis should be confirmed before quotation.
- ASME BPVC Section VIII where the exchanger shell, channel or pressure part is treated as pressure vessel equipment.
- ASME B31.3 where connected process piping and skid piping are specified under process piping rules.
- API 520 for pressure-relieving device sizing and selection reference where required by the project.
- API 521 for pressure-relieving and depressuring system review, including tube rupture and system-level relief scenarios.
- API 526 when flanged steel pressure relief valve dimensions and ratings are specified.
- API 527 when seat tightness testing is required by specification.
- TEMA where shell-and-tube heat exchanger mechanical design, inspection and project specifications are referenced.
Typical heat exchanger document package
Documentation should be agreed before manufacturing, especially for refinery exchangers, chemical process exchangers, steam heaters, reboilers, compressor coolers, refrigerant systems and packaged skids.
- Technical datasheet with model, size, orifice, set pressure and connection.
- Sizing calculation or certified relieving capacity confirmation.
- Tube rupture, thermal relief or blocked outlet relief basis when provided by buyer.
- Set pressure calibration certificate.
- Pressure test report and seat tightness test report when required.
- Material certificate for pressure-retaining parts and trim when specified.
- Special cleaning, low-temperature, oxygen-clean, corrosion-resistant or sour service record when specified.
- Nameplate, tag number, drawing, inspection witness record and project marking confirmation.
Heat Exchanger Safety Valve RFQ Data Checklist
| Required Data | Why It Matters | Example Input |
|---|---|---|
| Exchanger type | Defines geometry, relief case and protected side. | Shell-and-tube, plate, reboiler, condenser, vaporizer, aftercooler |
| Protected side | Confirms whether shell side, tube side or connected piping is protected. | Shell side, tube side, water side, process side, utility side |
| Shell-side and tube-side MAWP | Defines the pressure boundary and set pressure limit. | Shell MAWP 6 barg, tube MAWP 30 barg, design pressure 16 barg |
| Set pressure | Defines valve opening pressure. | 5.8 barg, 10 barg, 15 barg, 145 psi |
| Relief scenario | Determines required capacity and valve type. | Tube rupture, thermal expansion, blocked outlet, steam control failure, cooling failure |
| Medium and phase | Affects sizing, material, fouling and discharge behavior. | Steam, condensate, cooling water, hydrocarbon vapor, refrigerant, glycol, two-phase flow |
| Required relieving capacity | Confirms whether the valve can protect the exchanger. | kg/h, Nm³/h, SCFM, L/min, GPM, vapor generation rate, tube rupture flow |
| Relieving temperature | Affects body rating, trim, spring, seat and material choice. | -196°C, ambient, 90°C, 180°C, 350°C, steam saturation temperature |
| High-pressure source data | Required for tube rupture and utility failure cases. | Steam supply pressure, compressor discharge pressure, pump curve, upstream source pressure |
| Back pressure and discharge route | Influences capacity, stability and valve configuration. | Atmospheric vent, drain, flare, scrubber, closed collection, refrigerant header |
| Material / special service | Prevents corrosion, embrittlement, leakage or contamination. | 316SS, low-temperature material, PTFE seat, Hastelloy trim, oxygen clean, sour service |
| Required documents | Avoids inspection, installation and commissioning delays. | Datasheet, drawing, MTC, calibration report, pressure test, capacity certificate |
Final selection must be confirmed by heat exchanger datasheet, shell-side and tube-side MAWP, process conditions, high-pressure source data, applicable code, verified sizing basis and engineering review.
Common Heat Exchanger Safety Valve Selection Mistakes
Ignoring tube rupture
A high-pressure side can overpressure a low-pressure side after tube failure. Replacement by old valve size alone can miss the real pressure differential and transient flow.
Protecting the wrong side
Heat exchangers have at least two pressure boundaries. The PSV must protect the side that can be overpressured, not simply the side with the easiest nozzle connection.
Missing blocked-in liquid thermal relief
Isolated exchanger channels, bundles, plate sections and bypass lines can trap liquid. Heating from steam, sun, hot process fluid or CIP can create high pressure.
Using normal duty instead of relief duty
Normal heat duty does not always represent blocked outlet, utility failure, cooling failure or tube rupture relief load. The governing case must be calculated separately.
Ignoring two-phase or flashing relief
Reboilers, condensers and hot liquid exchangers may relieve flashing liquid or two-phase mixture. Gas-only sizing can understate the required valve and outlet capacity.
Ignoring back pressure from flare or scrubber systems
Outlet back pressure can reduce capacity and cause instability. Heat exchanger PSVs discharging to flare, scrubber or refrigerant header should be reviewed for back pressure.
Continue Your Heat Exchanger Pressure Relief Review
These related pages help move from heat exchanger application requirements to detailed safety valve selection, sizing, tube rupture review, thermal relief and material compatibility.
Heat Exchanger Safety Valve FAQ
Prepare a Complete Heat Exchanger PSV Datasheet Before Quotation
Send the exchanger datasheet, protected side, shell-side and tube-side MAWP, set pressure, relief scenario, high-pressure source data, medium and phase, required capacity, relieving temperature, operating pressure, back pressure, discharge route, material requirement, connection standard and required documents. A complete datasheet helps avoid unsafe assumptions and speeds up engineering review.
