Choosing a China sanitary safety valve manufacturer should not be based only on price, 316L stainless steel, tri-clamp size or a polished product photo. A sanitary safety valve must protect hygienic equipment from overpressure while also meeting cleanability, product-contact material, CIP/SIP, seal compatibility and documentation requirements. A reliable manufacturer should be able to explain the …
Choosing a China sanitary safety valve manufacturer should not be based only on price, 316L stainless steel, tri-clamp size or a polished product photo. A sanitary safety valve must protect hygienic equipment from overpressure while also meeting cleanability, product-contact material, CIP/SIP, seal compatibility and documentation requirements. A reliable manufacturer should be able to explain the valve’s set pressure, required relieving capacity, capacity basis, product-contact materials, surface finish, seal material, discharge condition, testing process and certificate package before the buyer approves the order. If these points are not checked, the valve may fit the hygienic line but still fail capacity review, leak after SIP, create a cleaning dead zone or delay QA approval because documents are missing. This guide explains what engineers and buyers should verify before sourcing sanitary safety valves from China.
Quick Answer / Engineering Summary: A qualified China sanitary safety valve manufacturer should prove two things at the same time: pressure protection and hygienic suitability. Before buying, check the protected equipment, MAWP, set pressure, required relieving capacity, certified or documented capacity basis, medium, CIP/SIP exposure, seal material, product-contact material, surface finish, drainability, back pressure, test reports and certificate package. Do not approve a sanitary safety valve by connection size or stainless steel appearance alone.
Need a project review before quotation?
Send us your medium, MAWP, operating pressure, set pressure, required relieving capacity, connection type, CIP/SIP condition, material requirement, seal requirement, back pressure and certificate requirements. A useful sanitary safety valve quotation should start from process data, not valve size alone.
A sanitary safety valve manufacturer should be evaluated differently from a general sanitary valve supplier. A sanitary valve may only need to control process flow, isolation or diversion. A sanitary safety valve must open automatically at a specified set pressure, relieve enough flow to protect equipment and reseat after pressure returns to a safe level. At the same time, it must not introduce hygienic risk into the process.
This matters because a valve can look sanitary but still be wrong for pressure protection. It may have a polished body and clamp connection but lack capacity data, set pressure calibration, seat leakage testing or traceable documentation. It may also meet the pressure requirement but fail hygienic review because of product retention, poor drainability or unsuitable seal material.
A general sanitary valve manufacturer may produce butterfly valves, check valves, ball valves, diaphragm valves or fittings. These products are not the same as sanitary safety valves. A safety valve requires pressure relief engineering, spring setting, seat performance, capacity review and test documentation.
When reviewing a supplier, ask whether the manufacturer can support safety valve-specific requirements such as set pressure calibration, relieving capacity data, pressure testing, seat leakage control, nameplate marking and technical drawings. If the answer is only about polishing, welding or clamp connections, the review is incomplete.
In a hygienic process system, pressure protection and cleanability are both required. A valve that protects the tank but traps product can become a quality problem. A valve that is hygienic in appearance but undersized for the relief case can become a safety problem.
The manufacturer should be able to discuss both sides of the duty:
For the product definition, read our What Is a Sanitary Safety Valve?. For the broader selection logic, read our Safety Valve Selection Guide.
A clear RFQ helps the manufacturer quote the correct valve. If the buyer only sends “316L sanitary safety valve, tri-clamp, 1 inch,” the supplier may quote by size rather than by protection duty. That can lead to the wrong set pressure, wrong capacity, wrong seal or missing documentation.
| RFQ Data | Why It Matters | What Can Go Wrong If Missing |
|---|---|---|
| Protected equipment | Defines what the valve protects and which pressure boundary applies | Wrong valve duty or wrong documentation basis |
| MAWP / design pressure | Supports set pressure review | Set pressure may not protect the equipment correctly |
| Operating pressure | Shows margin below set pressure | Leakage, simmering or frequent lifting |
| Set pressure | Defines when the valve begins to open | Valve may open too early or too late |
| Required relieving capacity | Defines how much flow must be relieved | Valve may fit the line but fail to protect the equipment |
| Medium and fluid state | Affects sizing, material, seal and discharge behavior | Wrong material, wrong capacity basis or wrong seat design |
| CIP / SIP condition | Affects seal, material and hygienic design | Seal damage, leakage or cleaning validation issue |
| Back pressure | Affects lift, capacity and reseating behavior | Chatter, flutter, poor reseating or reduced installed capacity |
| Required documents | Supports QA, inspection and import approval | Shipment delay, site rejection or rework |
The starting point is the protected equipment, not the valve catalogue. Confirm whether the valve protects a hygienic tank, fermentation vessel, clean steam line, process skid, filter housing, heat exchanger or other pressure equipment. MAWP or design pressure defines the pressure boundary, while set pressure defines when the valve starts to open under specified conditions.
Set pressure should not be selected only because it is commonly available. It should be reviewed against operating pressure, pressure fluctuation, MAWP, process requirement and applicable project specification. If operating pressure is too close to set pressure, the valve may leak, simmer or lift during normal operation.
For pressure terminology, read our Safety Valve Set Pressure, Overpressure and Blowdown Explained.
Required relieving capacity is the flow that must be discharged during the governing overpressure scenario. Certified or documented capacity is the valve’s verified relieving capability under a stated basis. These two values must be compared before order approval.
A frequent procurement problem is the replacement order that says only “same clamp size as the old valve.” The replacement may fit the line, but its internal orifice and capacity basis can be different from the original design. In one review, the valve was rejected before installation because the connection size matched while the documented relieving capacity did not cover the required relief load. The correction was to recheck required capacity, orifice data and capacity documentation before approval. The prevention is straightforward: ask the manufacturer for capacity data or certified capacity basis, not only connection size and pressure rating.
For deeper capacity review, read our Safety Valve Sizing and Certified Relieving Capacity Guide.
The manufacturer should know whether the valve handles liquid product, clean steam, compressed gas, process water, CIP solution, air, nitrogen or another medium. The fluid state at relieving condition may not be the same as normal operating condition.
Temperature affects density, seal material, stainless steel suitability, cleaning exposure and capacity interpretation. In clean steam or SIP service, the sterilization condition may be more severe than normal production duty. A quotation that does not ask about relieving temperature or SIP exposure is only preliminary.
Back pressure is the pressure at the valve outlet. It may come from a discharge pipe, recovery line, common header, closed vent, collection system or downstream equipment. Back pressure can affect valve lift, effective capacity and reseating behavior.
Sanitary safety valves are sometimes connected to recovery systems or closed discharge arrangements for product, steam or cleaning fluid management. If the manufacturer assumes atmospheric discharge but the installation creates outlet pressure, the valve may chatter or reseat poorly.
For a detailed explanation, read our How Back Pressure Affects Safety Valve Performance.
CIP and SIP conditions should be included in the RFQ. Cleaning chemical concentration, steam exposure, cleaning temperature and exposure frequency can affect seat tightness, seal life and hygienic performance.
If CIP/SIP conditions are ignored, the valve may pass factory testing but leak or degrade after several cleaning cycles. That increases maintenance cost, creates unplanned downtime and may delay quality release.

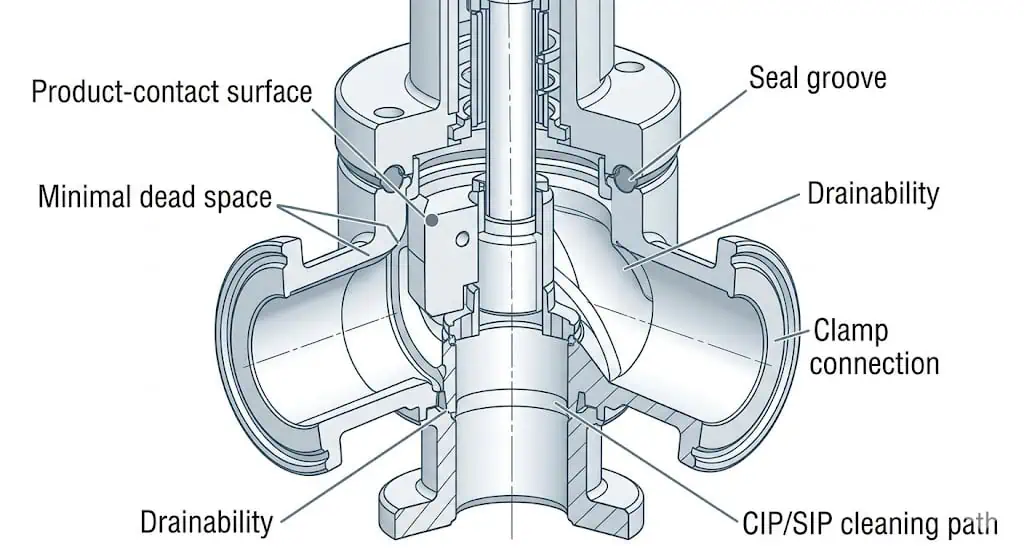

A sanitary safety valve should be reviewed by its product-contact geometry, not only by its external finish. A polished surface is helpful only if the internal design can be cleaned, drained and documented according to the project requirement.
| Hygienic Design Point | What to Ask the Manufacturer | Why It Matters |
|---|---|---|
| Product-contact material | Which parts contact product or clean steam? | Controls corrosion, contamination and traceability risk |
| Surface finish | What surface finish is provided and how is it verified? | Affects cleanability and QA acceptance |
| Dead space | Are there internal pockets or dead legs? | Product retention can create cleaning and microbial risk |
| Drainability | Can the valve and inlet branch drain correctly? | Residual product or cleaning fluid can remain after CIP |
| Seal area | Can the seal groove be cleaned and inspected? | Seal pockets can become contamination points |
| CIP/SIP path | How does cleaning or steam contact the internal surfaces? | Cleaning cycle must reach critical product-contact areas |
| Connection design | Clamp, welded, aseptic or other connection? | Affects installation, cleaning and maintenance |
316L stainless steel is common in sanitary process equipment, but the material name alone is not enough. Buyers should confirm which parts are product-contact parts, whether material certificates are available and whether the selected material is suitable for the product, cleaning chemicals and temperature.
If the medium contains chlorides, acidic cleaning agents or other corrosive components, material review becomes more important. The wrong assumption can lead to corrosion, roughened surfaces, seat damage and shorter valve life.
A valve can look clean from outside but still have internal dead space. Product retention may occur around the inlet branch, disc area, seal groove or outlet arrangement if the design is not suitable for hygienic service.
This is where many purchasing mistakes appear. A polished sanitary safety valve may pass visual inspection, but the inlet branch or internal pocket may not be reached effectively by the CIP flow path. The result is not only a cleaning concern; it can become a QA delay, a repeated cleaning issue or a process contamination risk. The practical correction is to review valve orientation, inlet arrangement, product-contact surface information and cleanability before ordering, rather than trying to solve the problem after installation.
Clamp connections are common because they support installation and maintenance. Welded or aseptic connections may be required in some clean systems. The correct connection depends on process layout, cleaning requirement, disassembly plan and project specification.
Do not assume that a clamp connection automatically makes the valve hygienic. Hygienic suitability also depends on internal geometry, seal design, product-contact surface and installation orientation.
Seal material should be selected for the product, cleaning chemicals and sterilization exposure. EPDM, PTFE, FKM and other materials behave differently under temperature, chemical exposure and repeated cleaning cycles.
In one typical service review, the valve performed normally during production but started leaking after repeated SIP cycles. The root cause was not only the valve setting. The seal had been selected for the product medium, while sterilization temperature, exposure time and cycle frequency were not included in the RFQ. The corrective action was to review the seal and seat design against product, CIP and SIP conditions together. For future orders, the RFQ was updated to include cleaning chemical, steam temperature and cycle frequency before quotation.
Cleanability depends on geometry, flow path, drainability, surface condition and seal design. A polished exterior does not prove that product-contact surfaces are cleanable. Ask the manufacturer to explain how the valve avoids product retention and how the internal surfaces are inspected or documented.
For a comparison of hygienic and industrial service, read our Sanitary Safety Valve vs Industrial Safety Valve.
Testing capability is one of the most important checks when choosing a sanitary safety valve manufacturer. A safety valve should not be shipped only because it looks complete. Set pressure, pressure tightness, seat behavior, material and documentation should be checked before shipment according to the purchase requirement.
| Test / Check | Purpose | Document to Request |
|---|---|---|
| Set pressure calibration | Confirms the valve opens at the specified pressure | Calibration report / test certificate |
| Pressure test | Confirms pressure boundary integrity | Pressure test report |
| Seat tightness check | Confirms leakage behavior under specified condition | Seat leakage test report, if required |
| Capacity review | Confirms relieving capability against required duty | Capacity data or certified capacity basis |
| Material verification | Confirms product-contact and pressure-retaining materials | Material certificate |
| Nameplate and tag review | Links the physical valve to the order and documents | Nameplate data / inspection record |
Set pressure calibration confirms when the valve starts to open. This is not only a factory routine; it affects whether the valve protects the equipment within the intended pressure boundary. The test record should match the purchase order, nameplate and datasheet.
Pressure testing confirms the pressure-retaining parts. Seat tightness testing confirms leakage behavior under specified conditions. For sanitary applications, leakage can affect product loss, clean steam loss, maintenance frequency and quality concerns.
If seat leakage performance is critical, define the test requirement before purchase. Do not assume every supplier uses the same leakage acceptance basis unless it is written into the order.
The manufacturer should provide the capacity basis used for selection. In some projects, certified relieving capacity or code-related capacity documentation may be required. In other projects, manufacturer capacity data may be used with project review. The buyer should not leave this point undefined.
A sanitary safety valve protects pressure equipment, so capacity cannot be treated as a secondary detail. If the valve does not relieve enough flow during the governing relief case, hygienic design alone cannot make the selection safe.
The nameplate should match the datasheet and test records. Check manufacturer, model, size, set pressure, material, serial number, capacity information where applicable and any required markings. A mismatch between nameplate and documents should be clarified before shipment.
Third-party inspection may be worth requesting when the order has strict documentation, special materials, project-specific standards, high-value equipment, critical process duty or multiple identical valves. Inspection can help reduce the risk of shipment delay, wrong documentation or site rejection.

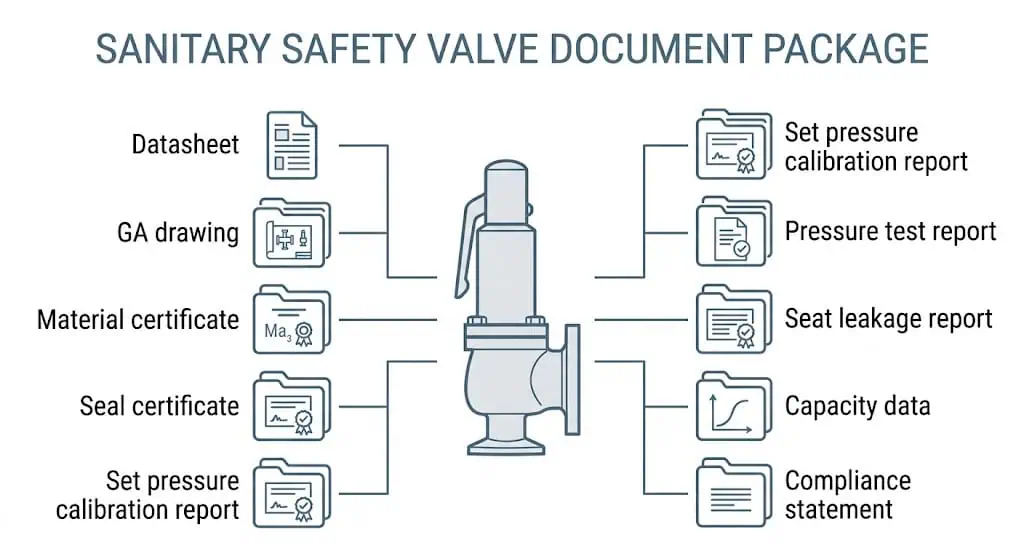

Documentation is part of the product. For hygienic systems, missing documents can delay QA approval even if the valve itself is mechanically acceptable. The document package should be agreed before order placement.
| Document | Why It Is Needed | When to Request It |
|---|---|---|
| Valve datasheet | Confirms model, size, set pressure, material, connection and service basis | Before technical approval |
| General arrangement drawing | Confirms dimensions, connection and installation interface | Before order confirmation |
| Material certificate | Supports material traceability for pressure and product-contact parts | Before shipment |
| Seal / elastomer documentation | Supports product, CIP/SIP and compliance review | Before approval for hygienic projects |
| Set pressure calibration report | Confirms the valve setting | Before shipment |
| Pressure test report | Confirms pressure boundary test | Before shipment |
| Seat leakage report | Confirms leakage performance where required | When leakage is specified |
| Capacity data or certificate | Supports relieving capacity review | Before final approval |
| Compliance statement | Supports project, QA or import documentation | When required by specification |
The datasheet and drawing should be reviewed before order confirmation. They should show the valve model, connection, set pressure, material, dimensions, discharge direction and any special hygienic or installation requirement.
Material certificates help confirm the material supplied. For sanitary service, buyers should identify which components are product-contact parts and whether the supplied certificate package covers those parts.
Seal documentation may be required for food, dairy, pharmaceutical or bioprocessing projects. The manufacturer should identify seal material, service limits and available compliance documents. If the seal contacts product or clean steam, this information should be reviewed before approval.
Test and calibration records should match the valve tag and nameplate. Capacity data should match the required relieving duty or the documented selection basis. If a manufacturer cannot provide a clear capacity basis, the buyer should treat the quotation as incomplete.
Do not assume every certificate is included by default. If the project requires a specific certificate, compliance statement, material record, inspection report or surface finish document, it should be listed in the RFQ and confirmed in the quotation.
This is a common late-stage procurement issue. A valve may meet the mechanical order description, but the supplied package may only include basic test documents while the buyer requires product-contact material and seal documentation. The result is shipment hold, QA rejection or additional document chasing. The corrective action is usually administrative, but the delay is real. The prevention is to put document requirements into the RFQ before production, not after the valve is ready to ship.
For broader purchasing checks, see our Safety Valve Procurement Checklist for Engineers and Buyers.
Standard names should not be used as decoration. If a supplier claims ASME BPE, 3-A, EHEDG, FDA, National Board or another compliance route, ask what the claim means, which document supports it and whether it applies to the actual valve being quoted.
Standards note to verify before publishing:ASME BPE may be relevant for bioprocessing, pharmaceutical and high-hygiene equipment. 3-A Sanitary Standards may be relevant for dairy, food and hygienic equipment. EHEDG Guideline 14 may be relevant for valves in hygienic and aseptic processes. API 520 Part I may be relevant as a sizing and selection reference for pressure-relieving devices in refinery and related industrial service. National Board / ASME capacity certification may be required for some safety relief device applications, depending on jurisdiction and project specification. Confirm the latest edition, exact scope and project requirement before publishing or quoting.
| Reference Direction | Where It May Apply | What to Verify |
|---|---|---|
| ASME BPE | Bioprocessing, pharmaceutical and high-hygiene equipment | Whether the supplier’s design, material, fabrication and documentation match the project scope |
| 3-A Sanitary Standards | Food, dairy and sanitary equipment | Whether the specific valve and documentation support the claimed sanitary requirement |
| EHEDG valve guidance | Hygienic and aseptic valve design review | Whether cleanability, drainability, material and valve design are considered |
| API 520 Part I | Pressure-relieving device sizing and selection direction | Whether sizing method and capacity basis are suitable for the application |
| National Board / ASME capacity basis | Code-controlled safety relief device applications | Whether certified capacity or code documentation is required by the project |
ASME BPE may be relevant when the sanitary safety valve is used in bioprocessing, pharmaceutical or high-hygiene systems. The buyer should not only ask whether the supplier “knows ASME BPE.” The practical question is whether the valve design, material, surface finish, fabrication, inspection and documentation match the project requirement.
3-A Sanitary Standards may be relevant for food and dairy processing equipment. If a supplier mentions 3-A, request the specific document or basis that supports the claim. A general statement on a website is not the same as project evidence.
EHEDG guidance can be useful when reviewing hygienic and aseptic valve design. In practice, this means checking cleanability, material, drainability, seal design and product-contact geometry. It does not replace safety valve sizing or set pressure review.
Some applications require certified relieving capacity or code-controlled pressure relief documentation. If this applies to your project, it should be stated clearly in the RFQ. Do not assume every sanitary safety valve manufacturer can supply code-certified capacity documentation for every size and set pressure.
The safest procurement approach is to ask for evidence. The supplier should state what standard or document applies, which valve or component is covered and what documentation can be supplied with the order. If the claim cannot be connected to the actual valve, treat it as unverified.
For a broader standard map, read our Safety Valve Standards Guide.
Most procurement mistakes come from approving the visible features while missing the engineering basis. The following red flags should be checked before placing an order.
| Buying Mistake | Why It Happens | Possible Consequence |
|---|---|---|
| Buying by tri-clamp size only | Connection size is easy to see | Wrong capacity or wrong orifice |
| Confusing sanitary valve with sanitary safety valve | Both may look polished and stainless | No proper set pressure or capacity review |
| Ignoring certified or documented capacity | Buyer focuses on pressure rating | Valve may fail to relieve required load |
| Ignoring CIP/SIP seal exposure | Normal product service is reviewed, cleaning cycle is not | Leakage, seal damage and maintenance increase |
| Accepting standard names without documents | Marketing claims are treated as proof | QA rejection or compliance dispute |
| Not reviewing back pressure | Outlet is treated as a simple drain | Chatter, flutter or poor reseating |
| Not confirming documents before production | Documents are requested after shipment is ready | Delivery delay or rework |
Tri-clamp size confirms the mechanical connection, not the relieving capacity. Always check set pressure, orifice, capacity data and relief duty.
A safety valve is not a general flow control valve. It must be tested and documented as a pressure relief device.
Capacity should be reviewed before purchase. If the manufacturer cannot provide capacity data or a clear capacity basis, the buyer cannot confirm that the valve protects the equipment properly.
CIP/SIP cycles can be more severe than normal operation. Seal material must be checked against both product and cleaning conditions.
Claims should be linked to documents. Ask what certificate, material declaration or compliance statement is available for the actual valve.
Outlet piping can affect valve stability. If the discharge is not atmospheric, provide the discharge destination and back pressure information to the manufacturer.

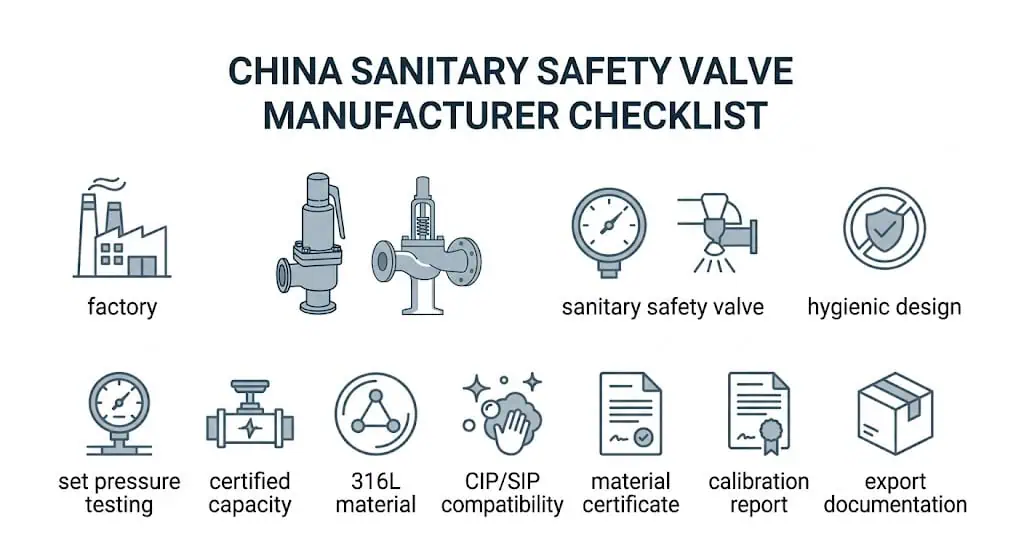

The following checklist can be used during supplier screening, technical bid review or final order confirmation.
| Review Area | Check Item | Confirmed |
|---|---|---|
| Factory capability | Can the supplier manufacture sanitary safety valves, not only general sanitary valves? | ☐ |
| Engineering support | Can the supplier review set pressure, medium, capacity and back pressure data? | ☐ |
| Hygienic design | Can the supplier explain product-contact surfaces, dead space and drainability? | ☐ |
| Material control | Are material certificates available for pressure-retaining and product-contact parts? | ☐ |
| Seal compatibility | Is seal material suitable for product, CIP and SIP conditions? | ☐ |
| Testing | Can set pressure calibration and pressure test records be supplied? | ☐ |
| Capacity basis | Is capacity data or certified capacity basis available? | ☐ |
| Documentation | Are datasheet, drawing, certificates and test reports included? | ☐ |
| Inspection | Can third-party inspection or project-specific inspection be supported if required? | ☐ |
| Export support | Can packing, labeling, shipment documents and after-sales support be handled? | ☐ |

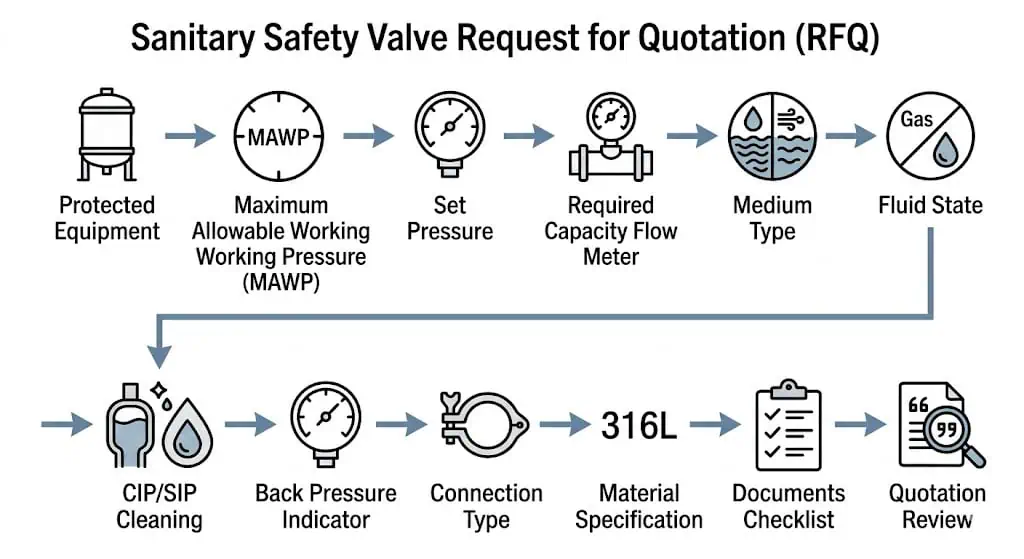

An accurate quotation depends on engineering data. A low-detail RFQ usually produces a low-confidence quotation. The following information helps the manufacturer select and document the valve correctly.
| Data Group | Information to Provide |
|---|---|
| Process and pressure data | Protected equipment, MAWP, operating pressure, set pressure, required relieving capacity, relieving temperature |
| Medium data | Product, clean steam, gas, liquid, CIP solution, SIP steam, density or other relevant properties |
| Hygienic data | Product-contact status, surface finish requirement, drainability, CIP/SIP cycle, sanitary connection type |
| Material and seal data | Body material, trim material, seal material, chemical compatibility, product-contact requirements |
| Installation data | Connection size, orientation, discharge destination, back pressure, outlet piping condition |
| Document requirements | Datasheet, drawing, material certificate, seal document, test report, calibration report, capacity data, compliance statement |
| Commercial data | Quantity, spare parts, delivery requirement, inspection requirement, packing and shipping destination |
Provide the protected equipment, MAWP, normal operating pressure, set pressure, required relieving capacity and relieving temperature. Without these values, the manufacturer cannot verify whether the quoted valve is suitable for the protection duty.
State whether the valve is product-contact, clean steam, CIP, SIP, washdown or non-product-contact service. Include surface finish, drainability, connection and cleaning requirements if they are defined by your project.
Confirm product-contact material, pressure-retaining material, trim material and seal material. If your project requires specific material certificates or elastomer documentation, list them in the RFQ.
State which tests and documents are required before shipment. If the purchase order does not mention seat leakage test, capacity data, special certificates or third-party inspection, the supplier may not include them.
If the valve must fit an existing skid, send drawings, photos or layout information. For OEM or repeated orders, a sample review may reduce installation risk. Lead time should include manufacturing, testing, documentation preparation and packing, not only machining time.
Request a sanitary safety valve quotation with engineering review:
Provide your process data, set pressure, required capacity, medium, CIP/SIP condition, connection, material, seal, discharge condition and certificate requirements. We can review whether a sanitary safety valve configuration is technically suitable before quotation.
When sourcing a sanitary safety valve from China, the lowest price is rarely the safest starting point. The first question should be whether the manufacturer can prove the valve is suitable for both pressure relief duty and hygienic service. That proof should come from engineering data, drawings, material control, seal review, test records and the required document package.
A practical buyer should avoid three shortcuts: buying by clamp size only, accepting standard names without evidence and treating sanitary appearance as proof of cleanability. Instead, ask the manufacturer to confirm set pressure, relieving capacity, product-contact materials, seal compatibility, CIP/SIP exposure, back pressure, testing and documents before approving the order.
Related safety valve engineering guides:
Author / Engineering Review Box: This article is written from a safety valve and pressure relief valve engineering review perspective, with attention to sanitary service, set pressure, certified capacity, hygienic design, CIP/SIP exposure, material compatibility, back pressure, testing and procurement documentation. Final valve selection should follow manufacturer-certified data, project specification, applicable standard editions and local regulatory requirements.
They can be reliable when the manufacturer provides proper engineering data, material control, hygienic design review, testing records and required documents. Reliability should be verified by project-specific review, not assumed from country of origin or product appearance.
Check whether the manufacturer can support sanitary design, set pressure calibration, required relieving capacity review, material certificates, seal documentation, CIP/SIP compatibility, pressure testing, capacity data and export documentation.
No. 316L may be suitable for many product-contact parts, but the valve also needs correct set pressure, capacity, hygienic geometry, seal compatibility, surface finish, drainability, testing and documentation.
No. Tri-clamp size only confirms the connection. You still need to check set pressure, required relieving capacity, capacity basis, medium, temperature, seal material, CIP/SIP exposure and documentation.
Common documents include datasheet, general arrangement drawing, material certificate, seal documentation, set pressure calibration report, pressure test report, seat leakage test report if required, capacity data and compliance statement if required.
Capacity must be reviewed. Whether certified relieving capacity is required depends on the project specification, jurisdiction and equipment code. At minimum, the buyer should ask for capacity data or a clear capacity basis.
Provide the cleaning chemical, steam temperature, exposure time and cycle frequency. The manufacturer should confirm seal material, product-contact material, cleanability and any required documentation against those conditions.
Send protected equipment, MAWP, operating pressure, set pressure, required relieving capacity, medium, relieving temperature, connection type, CIP/SIP condition, seal material, back pressure, discharge destination, document requirements and quantity.
