Safety valves in oil & gas, LNG/LPG, and process systems are not selected by pressure rating or connection size alone. They must be matched to the real relieving scenario, service medium, temperature range, back pressure, required relieving capacity, and the code basis of the equipment. A valve that performs acceptably on a gas separator may fail …
Safety valves in oil & gas, LNG/LPG, and process systems are not selected by pressure rating or connection size alone. They must be matched to the real relieving scenario, service medium, temperature range, back pressure, required relieving capacity, and the code basis of the equipment. A valve that performs acceptably on a gas separator may fail in cryogenic LNG service or in a corrosive process system because low temperature, flashing liquids, common discharge headers, or contaminated media change how the valve opens, lifts, reseats, and leaks. In practice, many failures do not start with a visibly wrong valve; they show up later as chatter, frozen moving parts, capacity shortfall, seat leakage, rejected inspections, or missing documentation. For users responsible for plant safety and project approval, the real task is to confirm whether the valve can protect the system during the worst credible overpressure event and whether it can be installed, maintained, and certified under the applicable code.
The Williams Olefins Plant explosion in 2013 is a reminder that pressure-relief system failures in hydrocarbon service can contribute to fires, personnel injury, asset loss, and prolonged shutdowns. A relief device is often the final layer of protection when process control and operator action are no longer sufficient.
Each service presents a different combination of pressure, temperature, fluid behavior, and consequence of release. Oil & gas systems may involve high pressures, sour gas, sand or scale contamination, and flare back pressure. LNG/LPG applications add cryogenic temperatures, rapid vaporization, and fire exposure concerns. General process systems often involve corrosive chemicals, thermal expansion, polymerization, or runaway reactions.

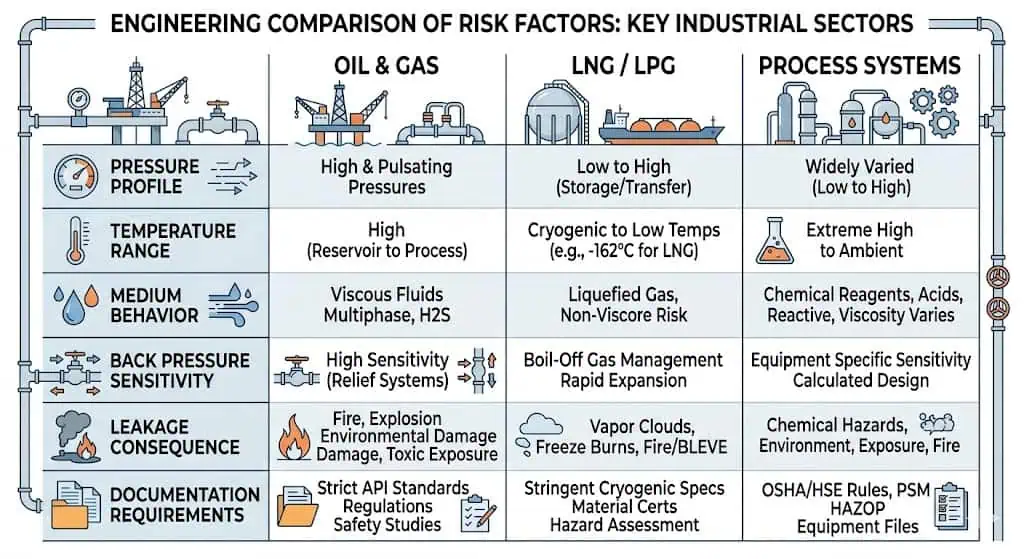

The table below shows why a single selection approach does not work for every application:
| Service | Typical Risks | What the Valve Must Withstand |
|---|---|---|
| Upstream / Midstream Oil & Gas | High pressure gas, sour service, solids, variable back pressure, flare systems | Stable lift under back pressure, suitable materials and seals, adequate certified capacity, NACE compliance when required |
| LNG | Cryogenic temperature, thermal contraction, brittle fracture risk, rapid boil-off | Low-temperature toughness, reliable sealing after thermal cycling, suitable stainless or nickel-based alloys, correct vent routing |
| LPG | Flammability, liquid expansion, fire exposure, two-phase release | Correct sizing for vapor and liquid scenarios, emergency fire case review, leak-tight performance, proper discharge location |
| Process Systems | Corrosive media, runaway reactions, polymerization, dirty or viscous fluids | Material compatibility, seat integrity, resistance to fouling or plugging, correct relief basis for reaction or blocked outlet cases |
Composite field scenario for engineering training: A plant reused a conventional spring-loaded valve from a hydrocarbon service on a common flare header after a modification project. The original set pressure was unchanged, but the built-up back pressure increased because several relief devices now discharged into the same header. During an upset, the valve chattered and did not achieve stable lift. Review showed that the discharge system had changed, but the back pressure had not been recalculated. The corrective action was to re-evaluate the flare header, verify built-up back pressure, and replace the valve with a balanced bellows design better suited to variable outlet pressure.
Engineers, buyers, inspectors, and maintenance teams usually focus on a practical set of questions before selecting a safety valve:
Users also care about spare parts availability, lead time, maintenance intervals, traceability, and whether the supplier can provide the certificates and nameplate information required by the owner, EPC, or inspection authority.
A safety valve is an automatic pressure-relieving device designed to open at a predetermined set pressure and discharge enough fluid to prevent the protected equipment from exceeding its allowable pressure limit. In gas and vapor service, “safety valve” usually refers to a device with a rapid “pop” action. In liquid service, “relief valve” opens more proportionally. “Safety relief valve” can serve either compressible or incompressible fluids depending on service conditions and code basis.
In oil & gas, LNG/LPG, and process systems, safety valves protect separators, pipelines, reactors, pressure vessels, heat exchangers, fired equipment, and storage systems. They act without external power and are intended to prevent vessel rupture, piping failure, product release, and escalation to fire or explosion.
Although all safety valves serve the same basic purpose, the relieving cases differ by process. Examples include blocked outlet, thermal expansion of trapped liquid, external fire, tube rupture, control valve failure, gas blowby, runaway reaction, or loss of cooling.
Key functions include:
Note: A valve that meets the pressure class of the piping is not automatically suitable as a pressure-relief device. The decisive check is whether it has sufficient certified relieving capacity at the required relieving conditions and whether its materials, seat design, and back pressure limits fit the service.
| Application Area | Example System | Typical Relieving Concern |
|---|---|---|
| Pressure Vessels | Gas separators, surge drums, LNG tanks | Fire case, blocked outlet, gas blowby |
| Piping Systems | LNG transfer lines, hydrocarbon pipelines | Thermal expansion of trapped liquid, blocked line |
| Chemical Processing | Reactors, columns, exchangers | Runaway reaction, tube rupture, vapor expansion |
| LPG Storage | Bullets, spheres, transfer systems | Fire case, liquid expansion, vapor pressure rise |
Spring-loaded safety valves remain common in oil & gas and process systems because they are simple, widely available, and well understood. A calibrated spring holds the disc closed until the set pressure is reached. These valves work well for many gas and vapor services, but conventional designs are sensitive to back pressure and may leak or chatter if the inlet or discharge piping is poorly designed.
Pilot-operated safety valves use a smaller pilot valve to control the main valve. They are often selected where tight shutoff is important, where operating pressure is close to set pressure, or where higher capacity is needed with compact size. In some services they tolerate back pressure better than conventional spring-loaded designs.
However, pilot-operated valves are not a universal upgrade. Their pilot circuits can be affected by dirty, polymerizing, or solid-laden service. Freezing, plugging, or wax deposition in sensing lines can cause unstable or failed operation.

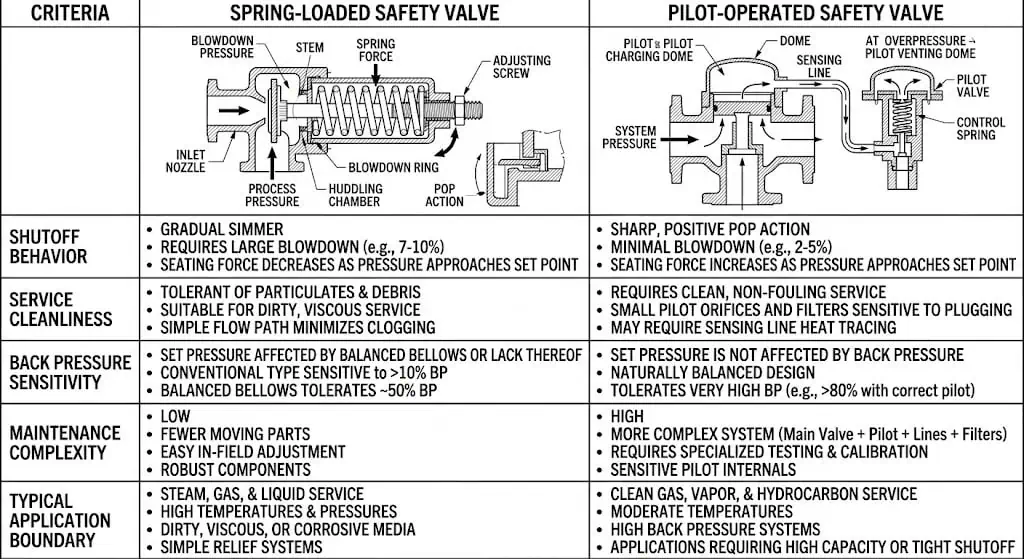

| Feature | Pilot-Operated Safety Valves | Spring-Loaded Safety Valves |
|---|---|---|
| Operation | Uses a pilot valve to control the main valve | Relies on spring force to keep the disc closed |
| Shutoff Performance | Often tighter near operating pressure | Acceptable in many services but may leak if operating close to set pressure |
| Back Pressure Tolerance | Often better in variable back pressure service, depending on design | Conventional type may be sensitive; balanced bellows improves performance |
| Service Cleanliness | Pilot passages can plug or foul in dirty service | Generally more tolerant of contaminated service |
| Typical Use | High-pressure gas systems, minimal leakage requirement, large capacity | General process service, steam, air, many gas and vapor applications |
Composite field scenario for engineering training: A pilot-operated valve was selected on a gas system to reduce leakage because the normal operating pressure was close to set pressure. The service later contained fine solids and condensate. After a cold spell, the pilot tubing became unstable and the valve failed to reseat cleanly. The root cause was not the pressure set point but the unsuitability of the pilot circuit for dirty service and inadequate winterization. The corrective action was to review service cleanliness, trace heat or protect pilot lines where needed, and consider a spring-loaded or balanced bellows design if fouling could not be controlled.
LPG systems require careful attention to both vapor and liquid behavior. Fire exposure, liquid expansion in blocked-in sections, and rapid vapor generation must all be considered. Relief devices must be positioned and vented to reduce the risk of flammable cloud formation near operators or ignition sources.
For LPG storage containers, operators typically review:
Safety relief valves for LPG storage and transport must be maintained and inspected under the relevant codes or national regulations. After any fire exposure, overpressure event, or damage, the valve should be removed from service, inspected, and re-qualified or replaced as required.

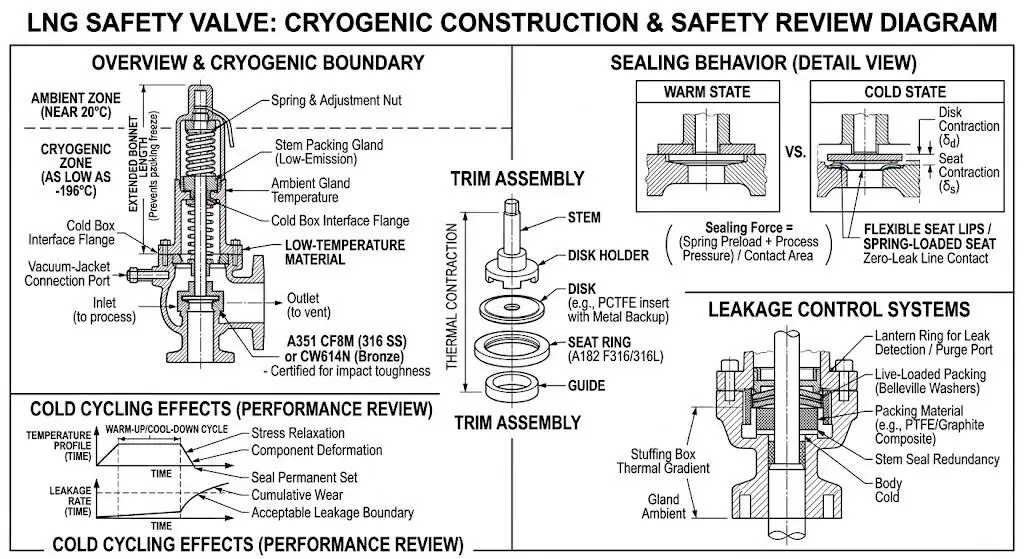

LNG service introduces extreme low temperature and rapid phase change. Cryogenic valves must retain toughness, dimensional stability, and sealing performance at temperatures far below ambient. Materials commonly used in LNG service include austenitic stainless steels and certain nickel alloys; carbon steels that perform adequately at ambient temperature may become brittle at cryogenic conditions.
Design considerations for LNG include:
Composite field scenario for engineering training: An LNG transfer line was fitted with a valve using materials suitable for ambient service but not verified for cryogenic duty. After repeated cooldown cycles, leakage developed because thermal contraction affected the seating surfaces and a non-cryogenic gasket lost integrity. The corrective action was to select cryogenic-grade materials and seals, verify low-temperature testing, and review installation details that could impose thermal stress.
Set pressure is the pressure at which the safety valve is adjusted to open under service conditions. For ASME Section VIII pressure vessels, the set pressure of a relieving device used as the primary protection generally must not exceed the MAWP of the protected vessel. Allowable accumulation depends on the number of devices and the relieving case. In many common cases, accumulation is limited to 10% above MAWP, though other code rules may apply for fire or multiple-valve scenarios.
Set pressure alone does not guarantee protection. The valve must also relieve the required mass or volumetric flow at the appropriate overpressure or accumulation and remain stable under back pressure.
Temperature affects materials, spring characteristics, seat tightness, and the mechanical integrity of the body, nozzle, disc, bellows, and seals. In cryogenic service, low temperature can embrittle unsuitable materials and change clearances due to thermal contraction. In hot service, spring relaxation, gasket degradation, and oxidation may affect performance.
Relieving capacity is one of the most important selection criteria. Engineers calculate the required orifice area based on the governing relief scenario and fluid properties. Connection size alone does not indicate capacity; two valves with the same inlet and outlet size may have different certified orifice letters and different rated capacity.
| Sizing Factor | Why It Matters |
|---|---|
| Relieving Scenario | Blocked outlet, fire case, tube rupture, thermal expansion, gas blowby, or reaction upset determine the required flow |
| Fluid State | Gas, vapor, liquid, flashing liquid, or two-phase flow influence equations and discharge behavior |
| Set Pressure and Accumulation | Determine the relieving pressure available to drive flow |
| Back Pressure | Can reduce effective relieving capacity and change lift stability |
| Certified Orifice Area | Determines the rated discharge capacity of the valve |
Common sizing references include API 520 Part I for sizing and selection, API 521 for pressure-relieving and depressuring systems, API 526 for flanged steel pressure relief valves, and ISO 4126 for international requirements.
Material selection affects corrosion resistance, seat leakage, service life, and compliance with sour service or low-temperature requirements. Users should not evaluate body material alone. They should confirm materials for nozzle, disc, guide, spring, bellows, gaskets, and soft seals where applicable.
| Service Condition | Material / Design Concern | Typical Approach |
|---|---|---|
| Sour Gas / H2S | Sulfide stress cracking | Review NACE MR0175 / ISO 15156 material limits |
| LNG / Cryogenic | Low-temperature toughness, thermal contraction | Use cryogenic-grade stainless or nickel alloys; confirm low-temperature testing |
| Chlorides / Seawater | Pitting and stress corrosion cracking | Select suitable stainless or corrosion-resistant alloys |
| Acidic / Corrosive Process | Nozzle, disc, guide, and spring corrosion | Choose corrosion-resistant trim or lined solutions where appropriate |
| Dirty or Polymerizing Media | Plugging, sticking, seat fouling | Review trim, pilot suitability, drain provisions, and maintenance interval |
Relief device selection in oil & gas, LNG/LPG, and process systems usually involves more than one code. The following are among the most relevant references:
| Code / Standard | Relevance |
|---|---|
| ASME BPVC Section VIII, Division 1 | Rules for overpressure protection of pressure vessels, set pressure, accumulation, and certification |
| API 520 Part I | Sizing and selection of pressure-relieving devices |
| API 520 Part II | Installation of pressure-relieving devices, including inlet and discharge piping |
| API 521 | Pressure-relieving and depressuring systems, including relief scenarios such as fire and blocked outlet |
| API 526 | Flanged steel pressure relief valves and standard orifice designations |
| API 527 | Seat tightness test requirements for pressure relief valves |
| API RP 576 | Inspection of pressure-relieving devices |
| ASME B31.3 / B31.4 / B31.8 | Process piping, liquid pipeline, and gas pipeline requirements where applicable |
These documents affect how engineers size, install, test, and document safety valves. For example, API 520 Part II recommends limiting inlet pressure loss under relieving flow to avoid instability, and API 527 defines acceptable seat leakage limits for certain types of valves.
Global projects may require compliance with ISO 4126, PED/CE, or local regulations in addition to API or ASME. These certifications help confirm that the valve has been designed, tested, and documented according to recognized procedures. End users should verify what the owner, EPC, inspection body, or local authority requires.
| Certification / Standard | Typical Use | Why It Matters |
|---|---|---|
| ISO 4126 | International pressure-relief device requirements | Provides an internationally recognized basis for design and testing |
| PED / CE | EU pressure equipment | Required for certain equipment sold or installed in Europe |
| National Board / NB | Capacity certification and valve repair tracking in jurisdictions using ASME / NB requirements | Supports code compliance, stamping, and repair traceability |
| NACE MR0175 / ISO 15156 | Sour service | Helps avoid sulfide stress cracking and material failure in H2S-containing service |
Safety valves should be fully traceable from manufacture to service and repair. Traceability is especially important in hydrocarbon, toxic, cryogenic, and regulated service.
Typical documentation includes:
Composite field scenario for engineering training: A replacement valve passed a bench test but was later rejected by the owner because the supplier could not provide certified capacity documentation and traceable material certificates for sour service trim. The problem was not the external appearance of the valve but the lack of documentation required for approval and long-term traceability. The corrective action was to obtain properly certified equipment with complete records and align procurement with the project datasheet and code basis.
Selection starts with the relieving case and the protected equipment. Engineers need to know the MAWP, normal operating pressure, set pressure, allowable overpressure or accumulation, relieving temperature, and whether the fluid is gas, vapor, liquid, or two-phase.
The process medium affects valve type, material selection, seat design, and maintenance strategy. Users should ask not only “What is the fluid?” but also “Can it corrode, polymerize, freeze, flash, or foul the trim?”
| Media Type | Selection Concern | Typical Choice / Action |
|---|---|---|
| Clean Gas / Vapor | Back pressure, seat tightness, certified capacity | Conventional, balanced bellows, or pilot-operated depending on back pressure and leakage requirements |
| Corrosive Media | Body, trim, bellows, and spring corrosion | Select corrosion-resistant materials and confirm compatibility |
| Dirty / Solid-Laden Service | Plugging, disc sticking, pilot fouling | Prefer designs tolerant of contamination and review maintenance frequency |
| Cryogenic Liquids / Vapors | Low-temperature toughness and sealing | Use cryogenic-grade designs and confirm low-temperature testing |
| Sour Gas | Sulfide stress cracking | Apply NACE MR0175 / ISO 15156 where required |
Outdoor installation, marine atmosphere, corrosive vapors, ambient temperature swings, vibration, fire exposure, and discharge location all affect safety valve performance. In cold climates, pilot lines or discharge piping may require tracing or weather protection. In marine or offshore service, external corrosion and vibration resistance become more important.
| Condition | Impact on Safety Valve Performance |
|---|---|
| Variable Back Pressure from Flare Header | May require balanced bellows or pilot-operated design |
| Low Ambient or Cryogenic Exposure | Can freeze pilot tubing or affect sealing |
| Corrosive Atmosphere / Marine Service | May corrode external parts, springs, and nameplates |
| Vibration or Pulsation | Can cause premature wear or instability |
Improper installation is a common cause of field problems even when the valve itself is correctly selected. API 520 Part II and manufacturer instructions provide guidance on inlet and discharge piping, support, and orientation.
Best practices include:
Tip: Many chattering problems are caused not by the valve spring or set point but by excessive inlet pressure loss, poor piping support, or increased back pressure after system modifications.
Routine inspection helps identify seat leakage, corrosion, stuck trim, broken springs, damaged bellows, or missing seals before the valve is needed in service. Inspection interval depends on service severity, cleanliness, regulatory requirements, and historical performance.
Preventive maintenance reduces unexpected failure and supports audit readiness. Depending on the service, companies may apply scheduled removal and bench testing, on-site testing, or condition-based inspection programs.
| Strategy | Description |
|---|---|
| Scheduled inspection | Remove and inspect valves at planned intervals based on service severity and regulations |
| Set pressure verification | Confirm opening pressure remains within allowable tolerance |
| Seat tightness testing | Check leakage using API 527 or applicable procedures |
| Cleaning / refurbishment | Remove deposits, repair seats, replace damaged springs, seals, or bellows |
| Condition review after upset | Inspect valve after overpressure event, fire exposure, or abnormal process conditions |

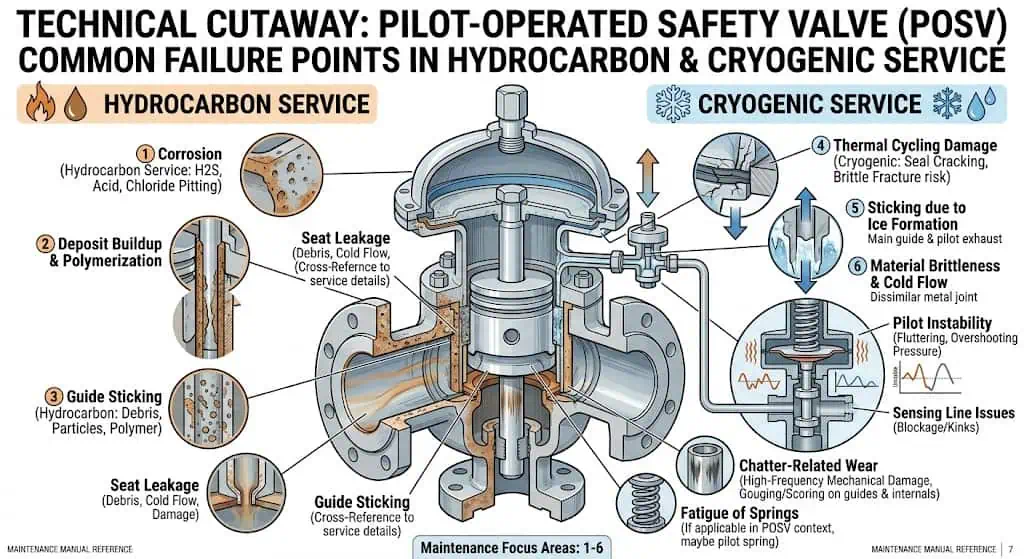

Failure modes vary with service and valve type, but several patterns occur repeatedly in oil & gas, LNG/LPG, and process plants.
Composite field scenario for engineering training: A process unit reported repeated seat leakage after turnaround. Review found that the valve had been reinstalled with poor inlet piping support and the system was operating close to set pressure. Minor vibration and frequent simmer damaged the seating surfaces. The corrective action was to review operating margin, improve inlet piping support, confirm set pressure and bench test results, and inspect seat condition using the applicable leakage test.
Pressure-relief devices are usually reviewed as part of broader process safety analysis such as HAZOP, LOPA, FMEA, or fire case assessment. Relief scenarios are not chosen arbitrarily; they are linked to credible process upsets, external fire exposure, blocked lines, tube rupture, control failure, and other events identified in the risk review.
| Technique | Why It Helps |
|---|---|
| HAZOP / LOPA | Identifies credible overpressure causes and safeguards |
| FMEA | Reviews component failure modes such as spring breakage or seat damage |
| Fire Case Review | Assesses relief demand during external fire exposure |
| Periodic Revalidation | Confirms that old valves still fit modified process conditions and headers |
Personnel involved in selection, installation, and maintenance of safety valves need practical training, not just awareness of terminology. Teams should understand how set pressure, accumulation, back pressure, service medium, and code requirements affect performance. They should also recognize signs of leakage, chatter, and corrosion and know when a valve must be removed for testing or repair.
Good recordkeeping supports compliance, troubleshooting, and lifecycle cost control. Each valve should have traceable records of set pressure, service location, test results, repair history, and material certificates where required.
| Practice | Benefit |
|---|---|
| Accurate maintenance records | Supports audit readiness and trend review |
| Traceable serial numbers and tags | Links each valve to approved datasheets and certificates |
| Heat number and material records | Confirms compliance for sour service or special alloy valves |
| Documented repair and recertification | Improves confidence in field performance after maintenance |
Facilities should plan for cases where a relief device opens, leaks, or fails. Emergency response plans typically include safe isolation, evacuation, flare handling, communication protocols, and coordination with external responders when necessary. Discharge to atmosphere in LPG or toxic service requires especially careful review of ignition sources, wind direction, and occupied areas.

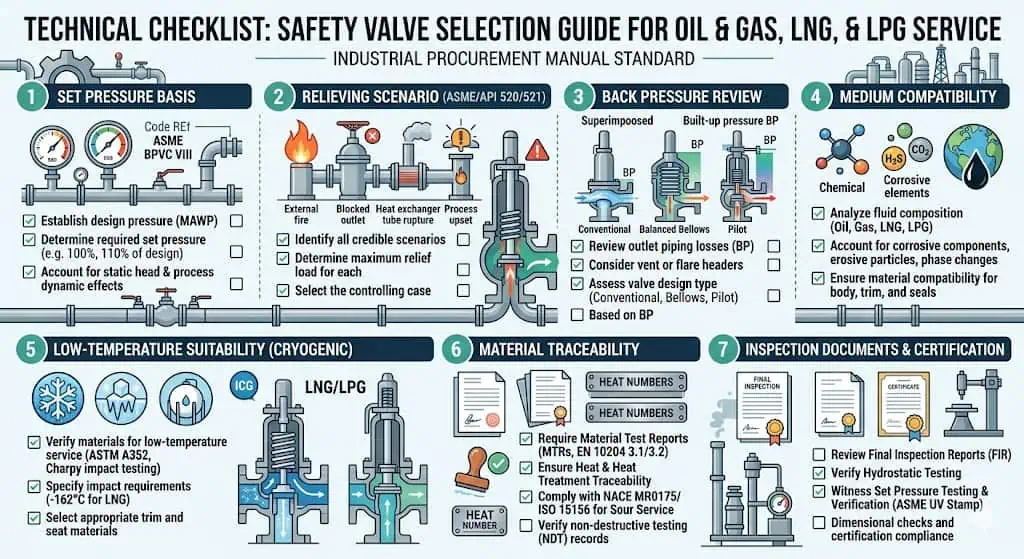

What buyers and engineers should verify before ordering or replacement:
| Pre-Order Check | Why It Matters |
|---|---|
| Set Pressure / MAWP | Ensures code compliance and safe opening point |
| Required Relieving Capacity | Confirms the valve can protect the worst-case scenario |
| Back Pressure | Affects lift stability, capacity, and valve type selection |
| Service Medium | Determines valve type, materials, and seat design |
| Temperature Range | Critical for LNG, LPG, hot hydrocarbon, and thermal cycling service |
| Material Compatibility | Prevents corrosion, embrittlement, or stress cracking |
| Certification / Code Basis | Supports project approval and audit readiness |
| Documentation and Traceability | Required for inspection, repair, and lifecycle management |
Safety valve selection in oil & gas, LNG/LPG, and process systems depends on the real relieving scenario, service medium, temperature range, back pressure behavior, material compatibility, discharge routing, and project compliance route. Users should not reduce selection to pressure class or connection size. Many field failures result from capacity shortfall, back pressure, unsuitable materials, dirty service, or incomplete documentation rather than from the valve body itself.
Proactive management of safety valves helps reduce unexpected shutdowns, improve audit readiness, and protect people and assets when abnormal pressure occurs.
The main function is to protect equipment and personnel by automatically relieving excess pressure before the protected system exceeds its allowable limit.
Inspection interval depends on service severity, regulatory requirements, and plant experience, but many facilities review safety valves at least annually or at scheduled turnaround intervals.
| Factor | Why It Matters |
|---|---|
| Set Pressure | Determines when the valve opens relative to MAWP |
| Required Relieving Capacity | Ensures the valve can handle the worst-case overpressure scenario |
| Back Pressure | Influences stable lift, effective capacity, and reseating |
| Material Compatibility | Prevents corrosion, stress cracking, freezing, or brittle failure |
| Service Medium and Temperature | Determine valve type, trim, and seal suitability |
| Certification / Documentation | Required for project approval, inspection, and traceability |
Engineers should review all of these factors together instead of selecting by size or pressure class alone.
No. Different applications require different valve types, materials, and installation details.
Documentation provides traceability, supports audits, and verifies that the valve meets the required code, material, and performance criteria.
Back pressure can change how the valve opens, how much it relieves, and how it reseats.
Cryogenic LNG service typically uses materials that retain toughness at very low temperatures, such as austenitic stainless steels and suitable nickel-based alloys.
