مشكلات الانسداد الشائعة في صمامات الأمان المزودة بغلاف

انسداد صمام الأمان المزود بغلاف: تحديد موقع العائق

أول سؤال في استكشاف الأخطاء ليس “ما أسباب الانسداد؟” بل “أين يوجد العائق؟”

يحتوي صمام الأمان المزود بغلاف على نطاقين وظيفيين مختلفين تمامًا: جانب العملية الذي يجب أن يظل متاحًا لتنفيس الضغط، ودائرة الغلاف أو التسخين المستخدمة للتأثير على درجة الحرارة. قد تؤدي مشكلة في دائرة التسخين إلى تبريد وسط العملية، لكن دائرة التسخين نفسها ليست مسار تدفق التنفيس. إن الفصل بين هذين النطاقين يتجنب خطأ تشخيصيًا شائعًا.

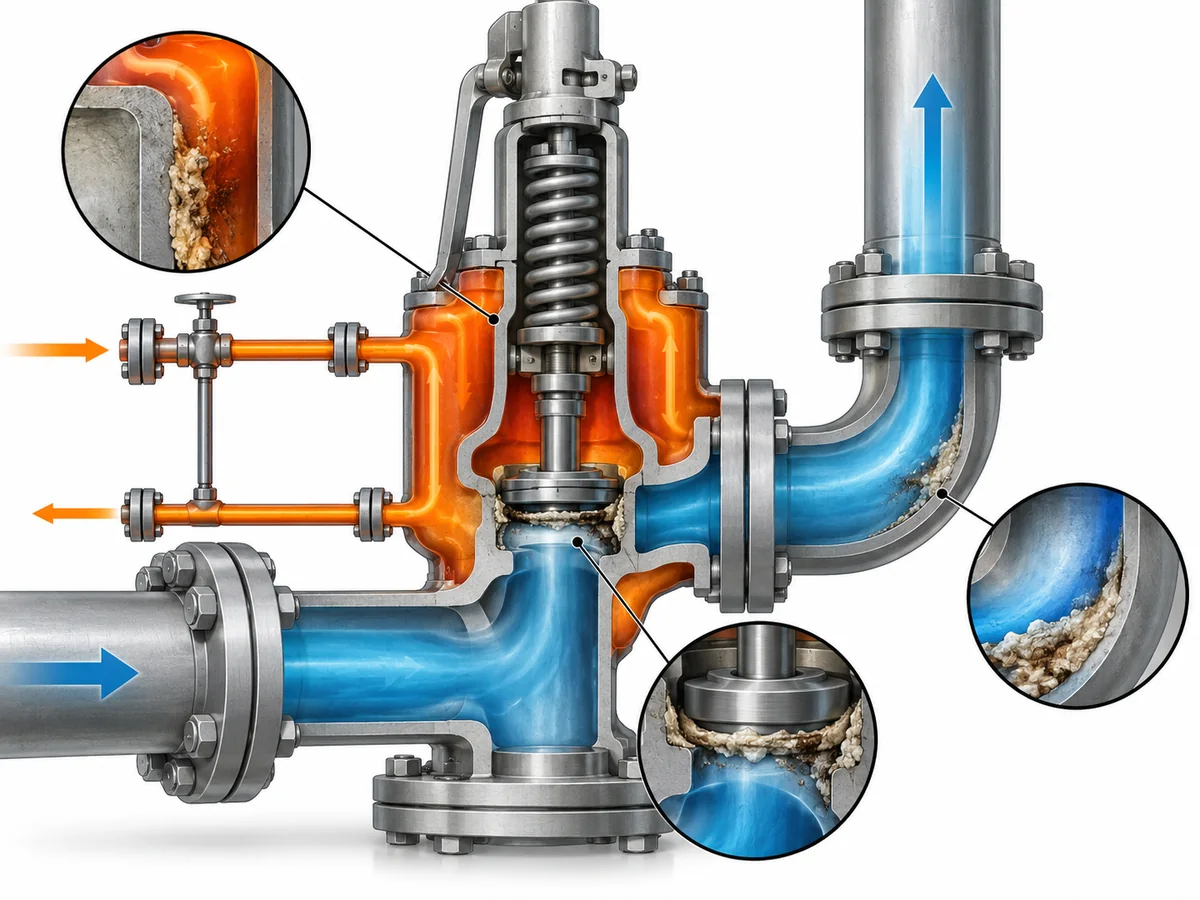

على جانب العملية، قد يظهر العائق حول الفوهة أو منطقة المقعد. تعترف وثائق المصنّع لصمامات التنفيس المزودة بغلاف وصمامات الخدمة الشاقة باحتمال تصلب المواد أو تجمدها أو تبلورها أو ترسبها في هذه المناطق. اعتمادًا على تصميم الصمام، قد تتداخل الملوثات أو الرواسب أيضًا مع المكونات الموجهة أو غيرها من المكونات المتحركة وتؤثر على الحركة المتوقعة أو إعادة الإغلاق.

الهندسة الداخلية الدقيقة خاصة بكل طراز، لذا لا ينبغي لمقال استكشاف الأخطاء أن يفترض أن كل صمام مزود بغلاف يسخن أو يكشف نفس المكونات. بالنسبة لصمام مركّب، فإن الرسم أو ورقة البيانات أو وثائق المصنّع هي المصدر الصحيح لتحديد المناطق المزودة بغلاف فعليًا والمكونات المتحركة التي قد تتعرض لوسط العملية.

قد يوجد العائق أيضًا خارج جسم الصمام. إن وصلة المخرج أو الأنابيب المجاورة قد يعمل في ظروف حرارية مختلفة عن المنطقة المزودة بالغلاف. إذا بقي الوسيط سائلًا عبر الجزء المُسخَّن من الصمام لكنه يبرد في اتجاه المصب، فقد تكون المشكلة الملاحظة مسألة حرارية على مستوى التركيب بدلًا من كون غلاف الجسم نفسه معيبًا.

يغيّر هذا النهج القائم على تحديد الموقع أولًا السؤال التالي. قد تُوصف رواسب عند الفوهة، أو مادة تعيق أحد المكونات الموجَّهة، أو مادة متصلبة في عمق ترتيب التصريف، جميعها بشكل عامي بأنها “انسداد”، لكنها لا تُثبت الآلية نفسها ولا تبرر الإجراء التصحيحي نفسه.

الانسداد الحراري يبدأ حيث ينهار التسخين الفعّال

الغلاف هو خاصية لإدارة الحرارة. ووجوده بحد ذاته لا يُثبت أن الحرارة الكافية تصل إلى كل موقع مهم.

هذا التمييز مهم بشكل خاص مع الوسائط التي تتغير قابليتها للتدفق بشدة مع درجة الحرارة. فإذا كانت مادة العملية قابلة للتصلب أو التبلور أو التجمد أو أن تصبح أكثر لزوجة بكثير عند التبريد، فإن سؤال استكشاف الأعطال ليس مجرد ما إذا كان الصمام مزودًا بغلاف. بل ما إذا بقيت منطقة العملية المعنية ضمن الظرف الحراري الذي تتطلبه تلك الخدمة.

هناك عدة متغيرات يمكن أن تغيّر هذه الإجابة.

الأول هو التغطية. تختلف تصاميم المصنّعين. فبعض ترتيبات الأغلفة تركّز التسخين حول جسم الصمام أو منطقة المخرج؛ وبعض التصاميم توفر مناطق مُسخَّنة إضافية للخدمات الشاقة. لذلك لا يمكن تلقائيًا اعتبار التتبع الحراري أو التغليف الحراري لأنابيب العملية دليلًا على أن منطقة مقعد الصمام أو المكونات الداخلية أو مسار التصريف تتلقى حماية حرارية مكافئة.

المتغير الثاني هو actual heat delivery. For a steam-heated installation, heat transfer depends on the condition and operation of the heating system, not merely on the presence of steam connections. General steam-heating practice shows that steam and condensate behavior, drainage, operating condition, and the arrangement of the heating circuit affect heat transfer. The exact significance of these factors must be evaluated against the installed valve and heating system rather than converted into a universal pressure, temperature, or flow rule.

The third variable is time. A process that remains fluid during steady production may behave differently during a prolonged standby or shutdown. A valve may be adequately heated in normal operation yet experience a different temperature history when process flow stops, the heating medium is interrupted, or surrounding equipment cools. A repeated plugging event after a particular shutdown pattern is therefore useful evidence, but it is still a clue rather than proof of one mechanism.

The fourth variable is the thermal boundary around the valve. The jacketed body, inlet pipe, outlet pipe, insulation, and any heat-tracing system should not be mentally collapsed into one heated object. They may have different thermal behavior. If troubleshooting confirms that the valve body remains adequately heated while a nearby process or discharge region cools, the next engineering task belongs to the broader piping and thermal-management arrangement.

A representative example illustrates the distinction. Imagine a valve body that remains heated while an adjacent region of the discharge path cools during standby. Material may remain mobile inside the heated region yet become more viscous or solidify farther downstream. The visible symptom is still “plugging near a jacketed safety valve,” but adding more heat to the valve body would not automatically address the actual restriction location. This is an illustrative engineering scenario, not a recorded project case.

The practical lesson is simple: jacket present و effective thermal protection at the restriction location are not equivalent statements.

Plugging Mechanisms Can Overlap

Temperature is important in jacketed service, but not every deposit is evidence of insufficient heating.

For temperature-sensitive media, several supported mechanisms deserve consideration. Material may harden or solidify as it cools. Crystallizing media may form solids in local regions where temperature or concentration conditions permit crystallization. Highly viscous material may become increasingly difficult to move as temperature falls. These mechanisms are directly relevant to why heating jackets are offered for certain relief-valve applications.

Particulate contamination and foreign material form a different branch of the diagnosis. Manufacturer troubleshooting literature documents cases where foreign material or deposits interfere with seating or guided components. A hotter jacket will not necessarily remove a contamination problem whose controlling mechanism is solids carried by the process.

These mechanisms can also interact. Temperature may change viscosity and deposit behavior at the same time that suspended material is present. A deposit found after disassembly may therefore be the result of more than one operating condition. Its appearance alone should not be used to declare that heating failure was the root cause.

More chemistry-dependent mechanisms require tighter boundaries. Polymerization, coking, decomposition, or other reaction-driven deposits can be relevant in some processes, but they should not be presented as generic causes of jacketed safety-valve plugging. Whether one of these mechanisms is credible depends on the actual medium, composition, contaminants, temperature history, residence time, and process conditions.

The same caution applies to exact solidification or crystallization temperatures. A generic article should not assign a transition temperature to an unspecified medium or assume that a familiar commercial material always behaves the same way. The real service composition and operating data control that judgment.

This is why “increase the jacket temperature” is not a universal troubleshooting answer. If the cause is foreign material, a process-derived deposit, a restriction outside the heated region, or a chemistry-dependent mechanism, more heat may fail to address the root problem and could introduce a different process concern.

The useful distinction is not simply thermal versus nonthermal. بل هي: What material is present, where did it accumulate, what operating history preceded the restriction, and which mechanism is actually consistent with that evidence?

Diagnose the Cause From Evidence, Not From the Word “Plugging”

A useful troubleshooting process should reduce uncertainty rather than convert a symptom into a confident diagnosis.

Start with the physical evidence. If the restriction location is unknown, do not skip directly to the cause. If the valve has been removed and inspected under the applicable maintenance procedure, record where deposits or foreign material were found. If the issue appears to be in adjacent piping rather than the valve itself, preserve that distinction.

Then compare that evidence with the process and temperature history. What medium was in service? What was its phase and known composition? Does its flowability depend strongly on temperature? Were there shutdowns, prolonged standby periods, abnormal temperature excursions, or changes in the heating system before the problem appeared?

For a jacketed installation, also verify what the heating system was actually doing. Useful information includes the heating medium, available pressure and temperature data, the jacket connections and coverage, and how surrounding piping or equipment was being kept hot. The purpose is not to prove a failure from one reading. It is to determine whether the proposed thermal mechanism is consistent with the real installation.

Operating and maintenance history adds another layer. A restriction discovered after a relief event may raise different questions from one that develops repeatedly during long standby periods. A valve that has experienced repeated contamination may require a different investigation from one in a clean service that solidifies predictably when cold.

The following matrix can help organize the evidence without turning observations into automatic diagnoses:

The goal is not to rank these causes by probability. There is no defensible universal ranking for an unspecified process, valve design, and heating arrangement. Instead, each observation should eliminate some explanations, strengthen others, and identify the information still missing.

That distinction matters because plugging can affect more than cleanliness. Manufacturer literature documents cases where solidified or foreign material can interfere with expected opening, full movement, closing, or reseating. That is enough to make a suspected restriction an engineering concern.

بل هو يحدد enough to calculate a generic loss of relieving capacity. Connection size is not capacity, and the visible amount of deposit is not a certified flow calculation. Quantifying the effect of a restriction requires the actual geometry, fluid and relieving conditions, valve data, and the applicable capacity basis. A statement such as “20% blockage means 20% less capacity” would not be justified.

For the same reason, an external appearance or nominal connection match is not a sufficient basis for replacement. If the troubleshooting process eventually leads to valve replacement, the replacement review must still address the applicable set pressure, required and documented relieving capacity, service conditions, configuration, materials, installation interfaces, back-pressure conditions where relevant, governing requirements, and documentation.

Confirm the Cause Before Cleaning, Repair, or Replacement

The purpose of troubleshooting is to define the next engineering action, not to prescribe an intervention before the mechanism is known.

Before a maintenance or engineering review, assemble a compact evidence package. The most useful inputs for this problem are usually:

This information helps separate an identification problem from an engineering-acceptance problem. A photograph may help identify where material accumulated, but it does not establish remaining relieving capacity. A matching connection size may identify a replacement candidate, but it does not establish interchangeability. A jacketed body may confirm that thermal management was intended, but it does not prove that the installed heating arrangement was effective under the event being investigated.

Corrective action should follow the confirmed cause as closely as the available evidence allows. If inadequate local heating is supported, the heating arrangement needs engineering review. If the restriction is outside the jacketed region, the broader piping and thermal-management system becomes the relevant boundary. If process solids or foreign material are involved, the source of those deposits must be investigated rather than automatically increasing heat. If the deposit mechanism cannot yet be identified, the correct next step is additional inspection or process review—not a more confident assumption.
